Home 〉 Products 〉 Dot Matrix Printer 〉 1140

1140

The new 1140 is designed to meet the requirements of high definition and cost-effective printing in the market. As such, a great deal of innovative technologies has been applied making it extremely competitive over its closest rivals. This entry level model is ideal for handling day-to-day front and back office tasks and impresses thanks to its compact dimensions and robustness. With the inclusion of Bluetooth and WiFi interfaces into the options line-up, this small footprint printer is able to complement well to semi mobile grocery stores which required to print sales documents on-the-go with paired handheld devices.

  1. 80-column, advanced 9-pin

  2. Up to 400 CPS speed

  3. Up to 5-ply copy capability (original + 4)

  4. Wide range of optional interfaces

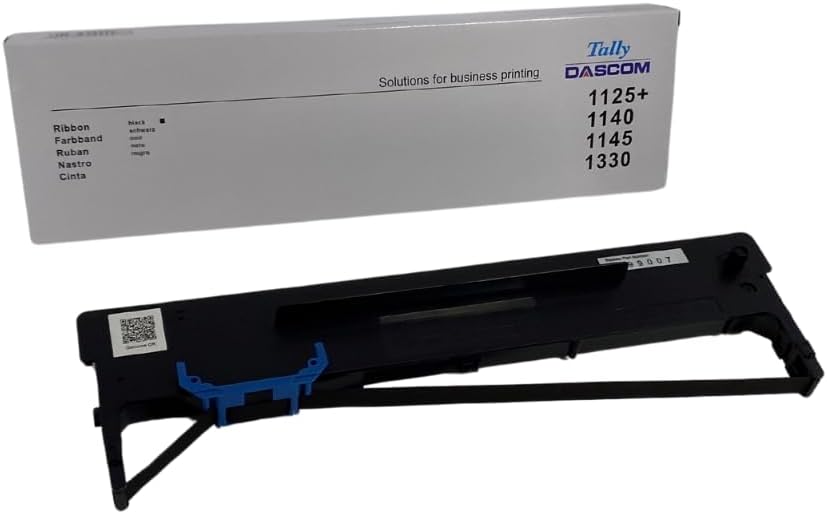

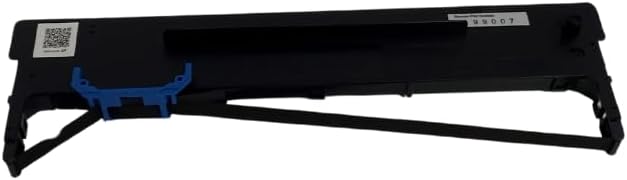

  5. 9 mil characters long life ribbon

Learn More
×

OVERVIEW

Dascom 1140, is a 9 pin, 80 column serial dot matrix printer with a USB interface as standard. Compact in size, the 1140 is perfect for industrial environments and front & back office applications where space is limited. With low running costs, high quality output and an easy to use control panel it‘s ideal for small business, low volume listings and reports, as well as dispatch notes and labels.

In addition to these applications, the 1140 is also well suited to measurement and control systems. Among the lowest priced matrix printers available today, the 1140 also offers a long life ribbon giving this printer very low running costs. For draft printing it’s considerably less expensive operating costs make it a viable alternative to low end inkjet printers.

Parameter

  1. Print Head

    9 pins

  2. Resolution

    Up to 144 x 240 dpi

  3. Print speed

    Up to 400 characters per second (cps)

  4. Print volume

    Up to 6000 pages per month

  5. Print head Life

    Life 400 million strokes

  6. Paper Type

    Cut sheets, continuous forms, mulit-part forms

  7. Print copies

    1 original and 4 copies

  8. Paper Size

    Width: 95 to 267 mm  Length: 114 to 362 mm (Cut sheet); 114 to 558 mm (Fanfold)

  9. Interfaces

    USB 2.0

  10. Emulations

    IBM,Epson

Download

  1. 1140 Data sheet

    Download

  2. 1140 User Guide - English

    Download

  3. 1140 / 1145 Installation Guide

    Download

  4. 1140 Ethernet Board Firmware

    Download

  5. 1140 Firmware

    Download

  6. 1140 Tally Dascom Config Tool

    Setup and configuration tool

    Download

  7. 1140 Driver for Windows

    Windows 32/64bit driver for Tally Dascom 1xxx printers MS certified for use with 7/8/8.1/10 11 and Server 2008-2016 ,2019, 2022 Package Aware Version 6.7

    Download
